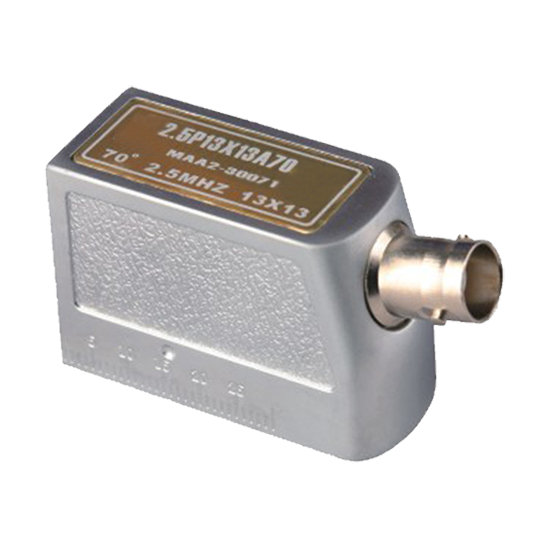

      Angle Beam Probe-EN

      Brand:

      Mitech

      Model:

      Measuring range:

      Resolution Accuracy:

      Communication storage:

      Working time:

      Main unit weight:

      Dimensions:

      Package dimensions:

      Total weight:

      Product

      • Overview
      • Graphic
      • Technical
      • Configuration
      • Related

      Product

      • Overview
      • Graphic
      • Technical
      • Configuration
      • Related
      • Product Overview

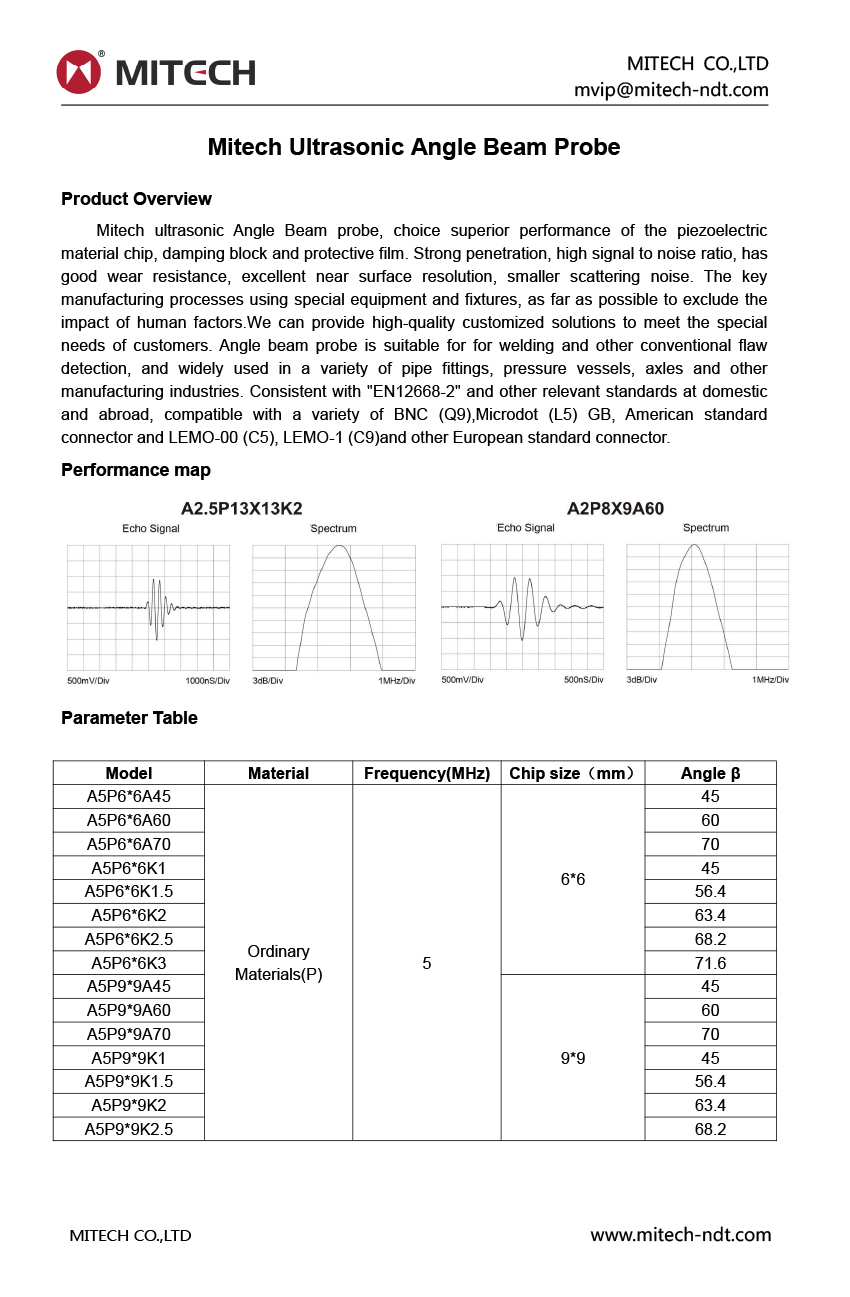

        Mitech ultrasonic Angle Beam probe, choice superior performance of the piezoelectric material chip, damping block and protective film. Strong penetration, high signal to noise ratio, has good wear resistance, excellent near surface resolution, smaller scattering noise. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors.We can provide high-quality customized solutions to meet the special needs of customers. Angle beam probe is suitable for for welding and other conventional flaw detection, and widely used in a variety of pipe fittings, pressure vessels, axles and other manufacturing industries. Consistent with "EN12668-2" and other relevant standards at domestic and abroad, compatible with a variety of BNC (Q9),Microdot (L5) GB, American standard connector and LEMO-00 (C5), LEMO-1 (C9)and other European standard connector.

        Function & application

        Applied for ordinary weld inspection, pipe fittings, pressure vessels, storage tanks, turbine blades, axles, castings and forgings, railway wheels and rails.

        Working Principle

        Working Conditions

        Instrument Features

        Operating Method and Attentions

        Instrument Maintenance

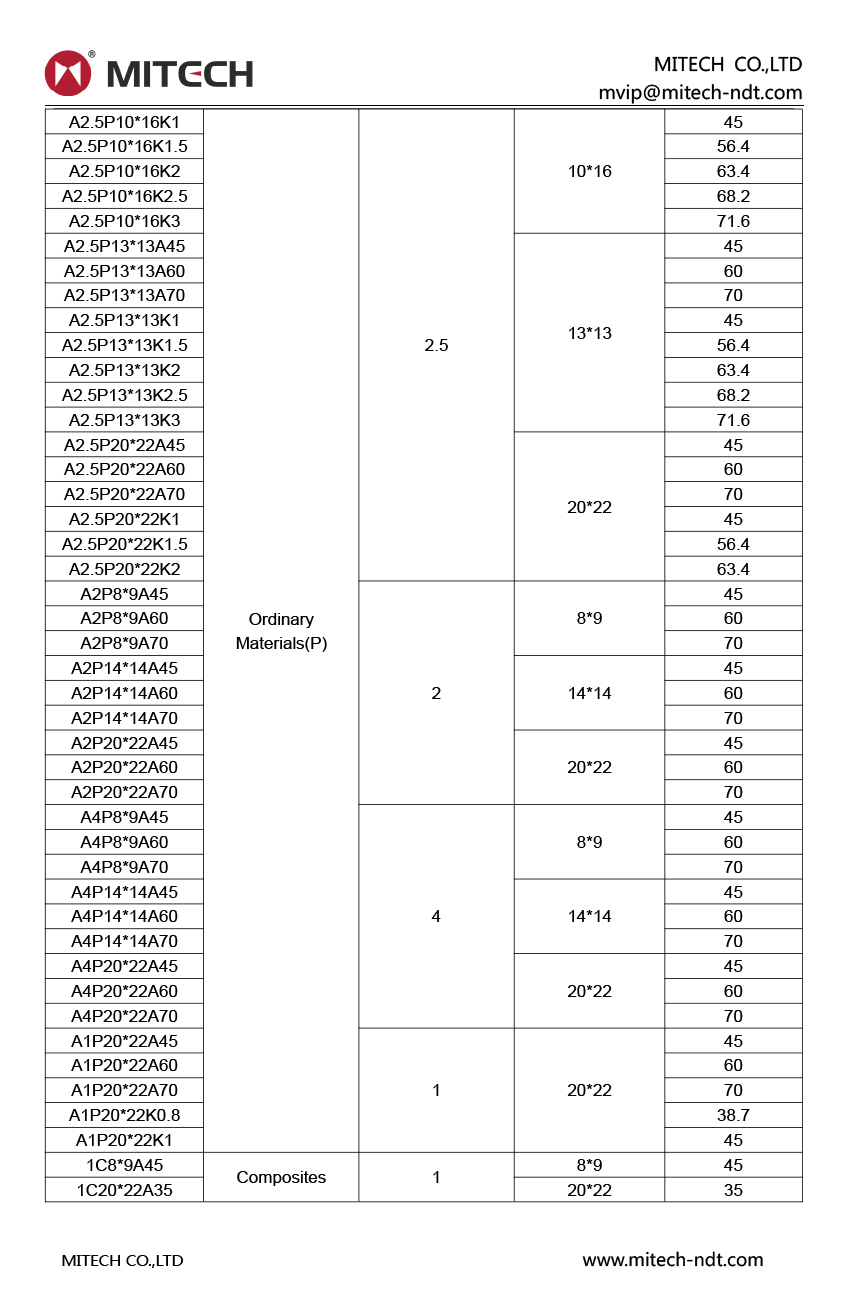

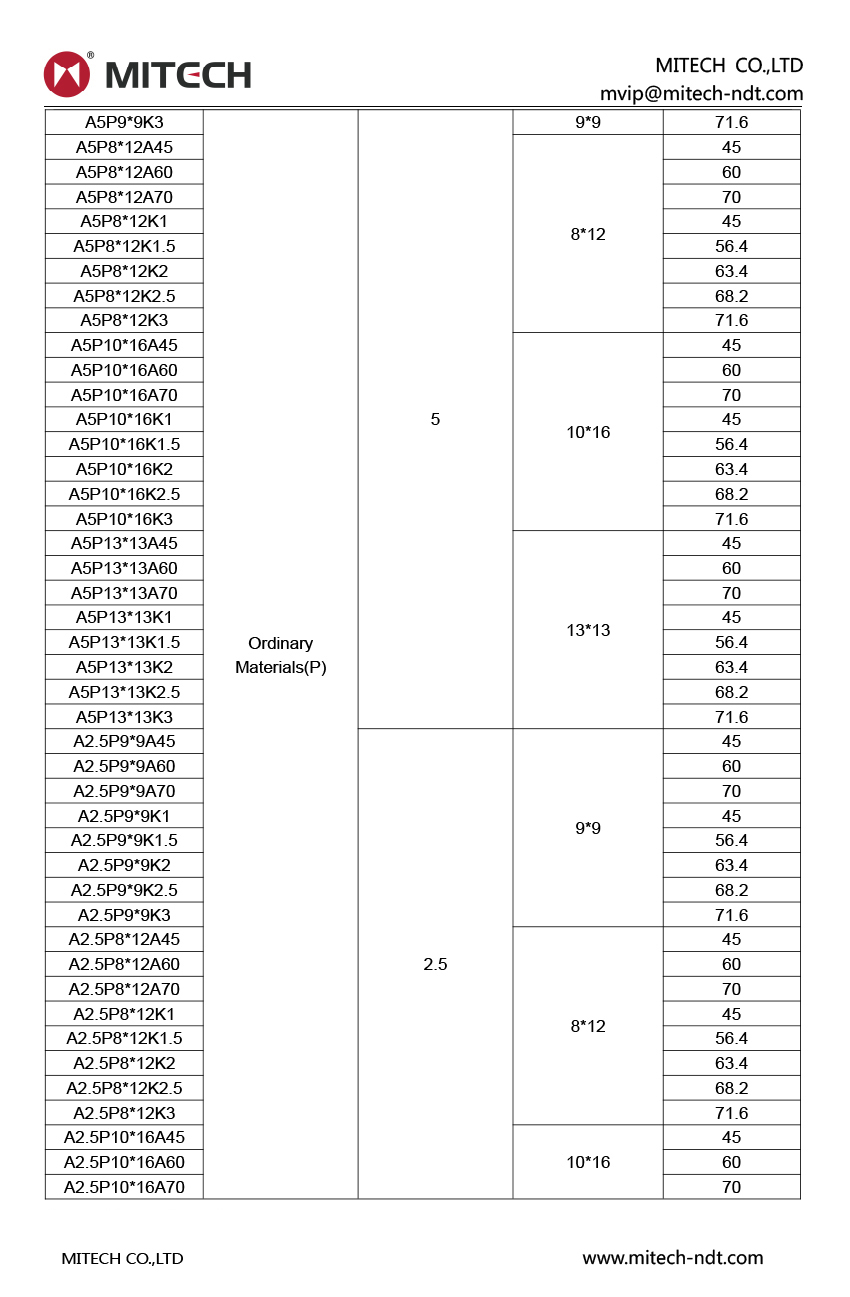

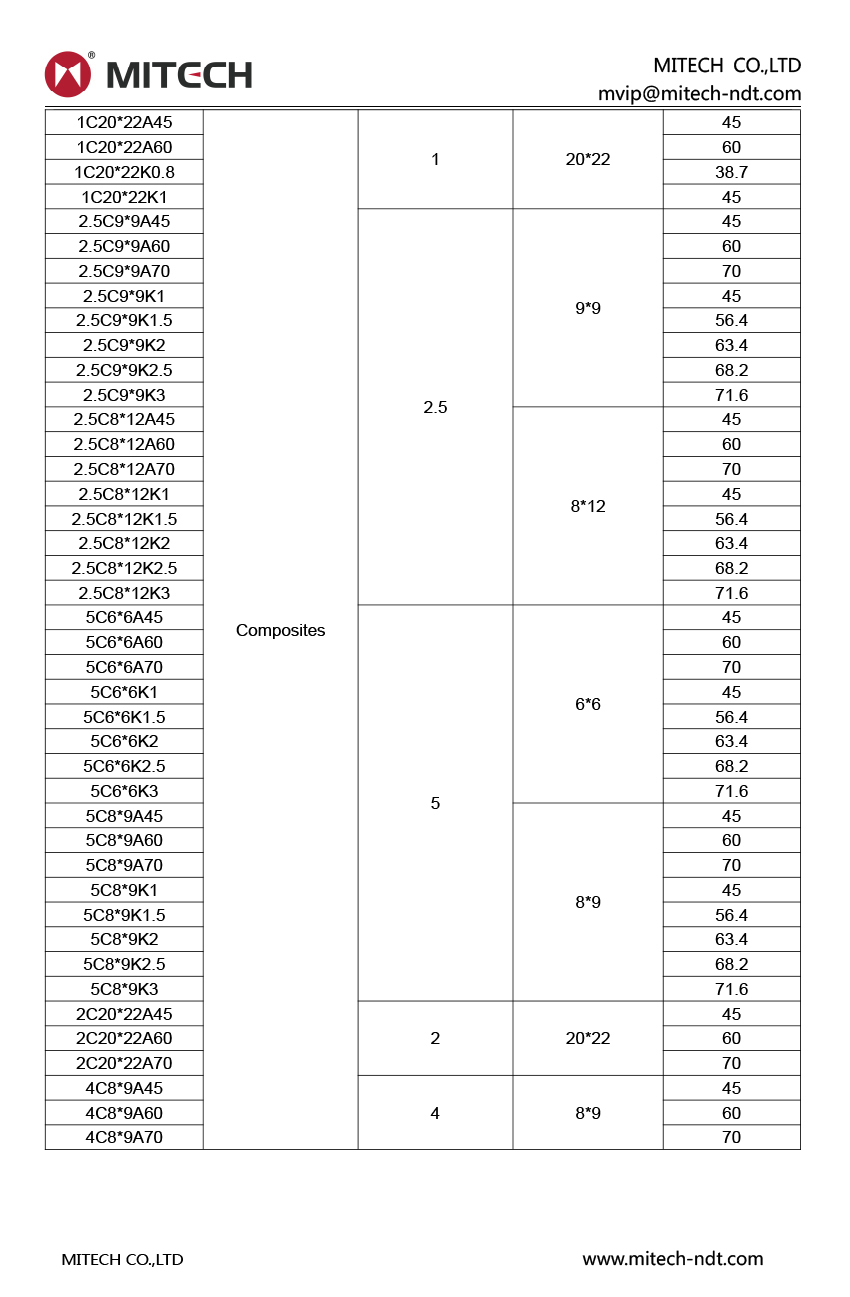

      • Material P/C
        Frequency(MHz) 1/2/4/2.5/5
        Chip size(mm) 6*6/9*9/8*9/8*12/10*16/13*13/14*14/20*22
        Angle A45/A60/A70/K0.8*K1/K1.5/K2/K2.5/K3
      ×
