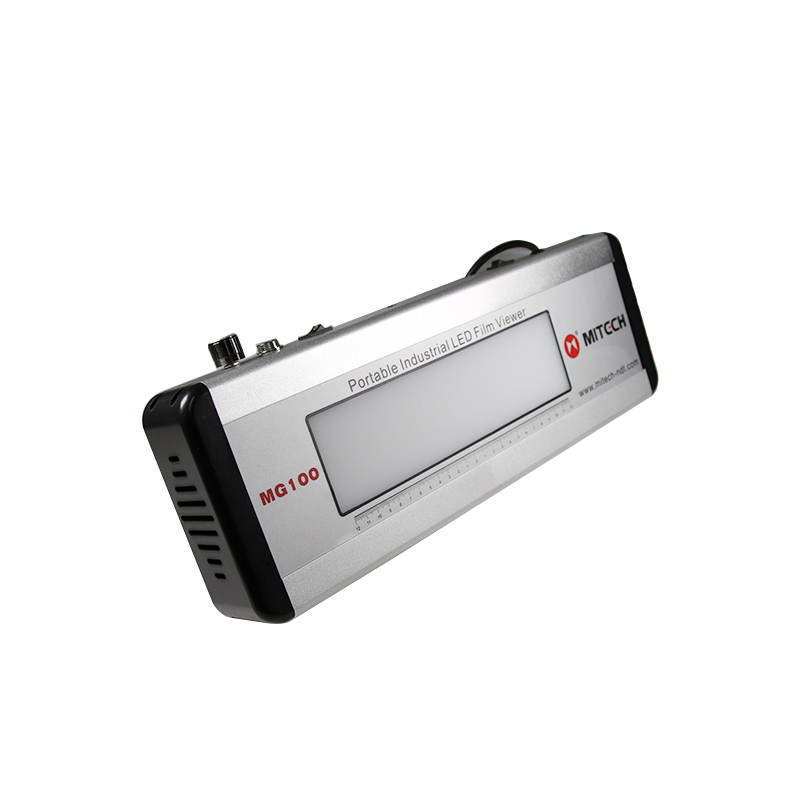

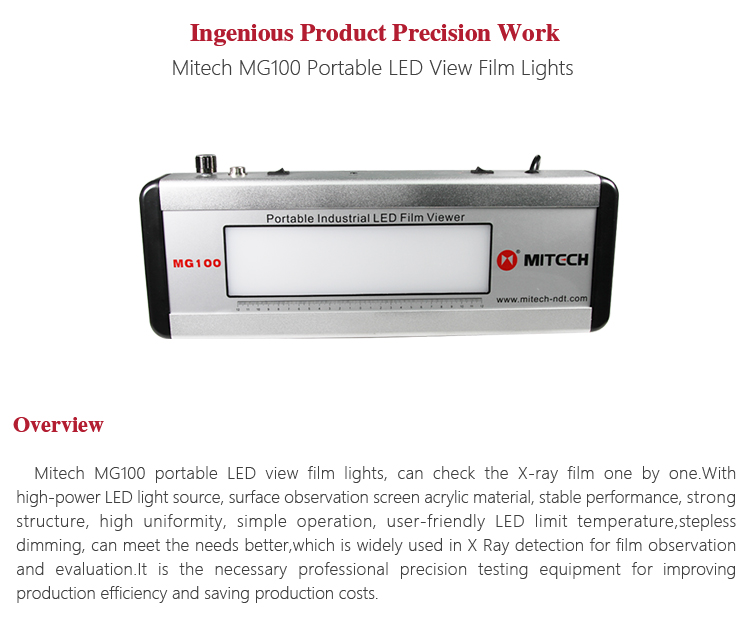

Mitech MG100 portable LED view film lights，can check the X-ray film one by one.With high-power LED light source, surface observation screen acrylic material, stable performance, strong structure, high uniformity, simple operation, user-friendly LED limit temperature, stepless dimming, can meet the needs better,which is widely used in X Ray detection for film observation and evaluation.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs

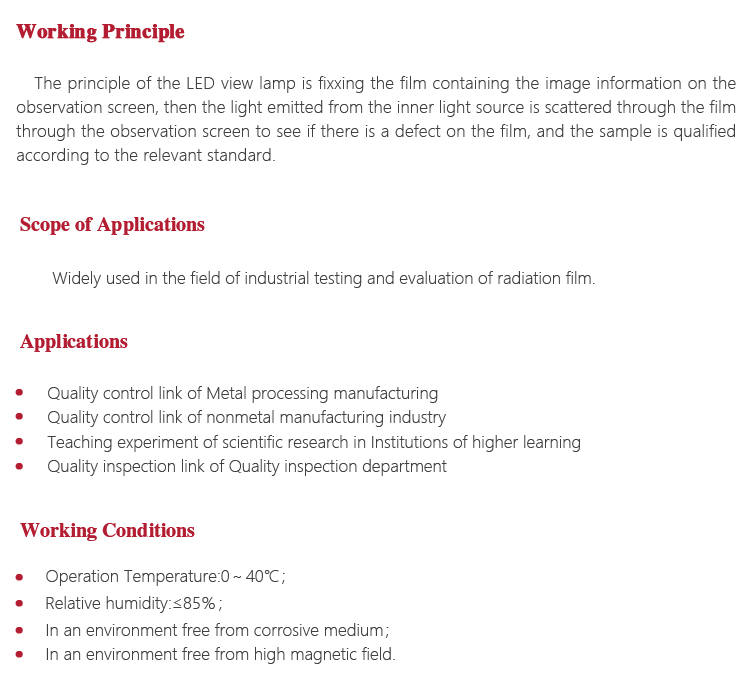

The principle of the LED view lamp is fixxing the film containing the image information on the observation screen, then the light emitted from the inner light source is scattered through the film through the observation screen to see if there is a defect on the film, and the sample is qualified according to the relevant standard

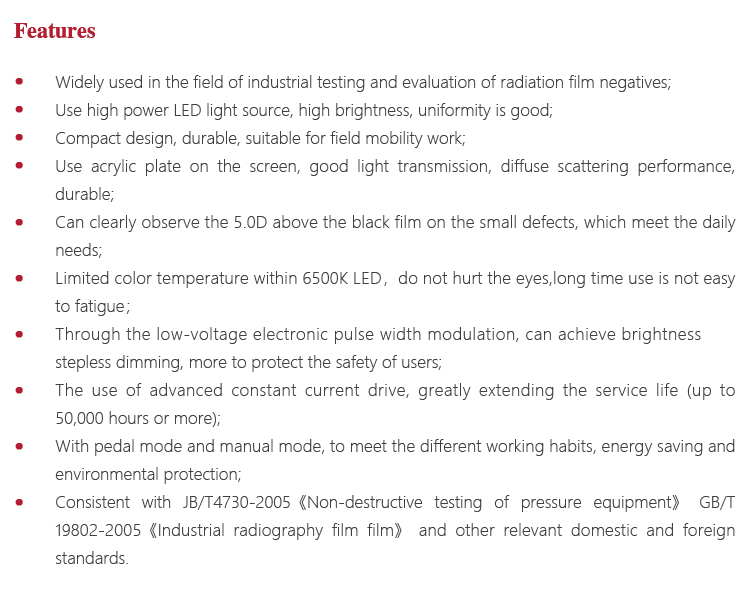

Widely used in the field of industrial testing and evaluation of radiation film negatives;

Use high power LED light source, high brightness, uniformity is good;

Compact design, durable, suitable for field mobility work;

Use acrylic plate on the screen, good light transmission, diffuse scattering performance, durable;

Can clearly observe the 5.0D above the black film on the small defects, which meet the daily needs;

Limited color temperature within 6500K LED，do not hurt the eyes,Long time use is not easy to fatigue；

Through the low-voltage electronic pulse width modulation, can achieve brightness stepless dimming, more to protect the

safety of users;

The use of advanced constant current drive, greatly extending the service life (up to 50,000 hours or more);

With pedal mode and manual mode, to meet the different working habits, energy saving and environmental protection;

Consistent with JB/T4730-2005《Non-destructive testing of pressure equipment》、GB/T 19802-2005《Industrial             radiography film film》 and other relevant domestic and foreign standards

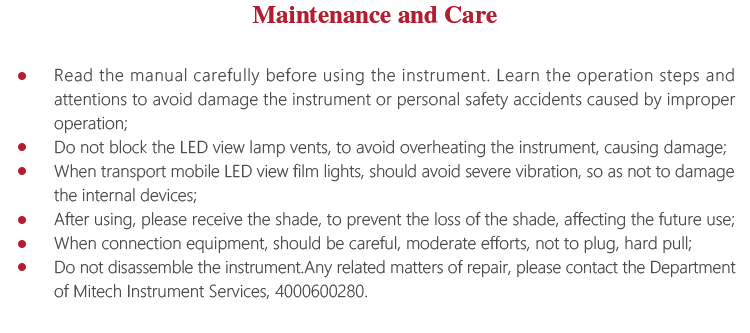

Read the manual carefully before using the instrument. Learn the operation steps and attentions to avoid damage the instrument or personal safety accidents caused by improper operation;

Do not block the LED view lamp vents, to avoid overheating the instrument, causing damage;

When transport mobile LED view film lights, should avoid severe vibration, so as not to damage the internal devices;

After using, please receive the shade, to prevent the loss of the shade, affecting the future use;

When connection equipment, should be careful, moderate efforts, not to plug, hard pull;

Do not disassemble the instrument.Any related matters of repair, please contact the Department of Mitech Instrument Services, 4000600280
